14000 Series Storefront Framing

14000 Series Storefront

For optimal strength and thermal performance, use Tubelite’s 14000 Series Storefront Framing, a flush-glazed system for use on storefront and low-rise applications. The 14000 series framing is available in standard nonthermal E14000, single P&D thermal T14000, and dual P&D thermal TU14000 members, for use with glass or panels up to 1-1/8″ thick. Extra-heavy intermediate verticals are available for high performance against strong windloads.

Reduce project labor costs with the flexibility of inside or outside glazing. Members can be assembled using screw spline or clip joinery. Our redesigned storefront systems are based on #12 screw fasteners which greatly decrease rework in the field. Framing is compatible with Tubelite Narrow, Medium and Wide Stile Doors.

Our 14000 Series Storefront products are subjected to thorough testing by an independent laboratory, ensuring that you get the highest quality storefront framing products that the industry has to offer.

14000 Series Storefront

For optimal strength and thermal performance, use Tubelite’s 14000 Series Storefront Framing, a flush-glazed system for use on storefront and low-rise applications. The 14000 series framing is available in standard nonthermal E14000, single P&D thermal T14000, and dual P&D thermal TU14000 members, for use with glass or panels up to 1-1/8″ thick. Extra-heavy intermediate verticals are available for high performance against strong windloads.

Reduce project labor costs with the flexibility of inside or outside glazing. Members can be assembled using screw spline or clip joinery. Our redesigned storefront systems are based on #12 screw fasteners which greatly decrease rework in the field. Framing is compatible with Tubelite Narrow, Medium and Wide Stile Doors.

Our 14000 Series Storefront products are subjected to thorough testing by an independent laboratory, ensuring that you get the highest quality storefront framing products that the industry has to offer.

E14000 Series Product Specifications
Application: Low-rise commercial buildings including retail, office, healthcare, schools, etc.
Description: 2″ x 4-1/2″ center set, outside or inside flush glazed storefront.
Face Width: Overall Depths: Glass: Air Infiltration: Water Infiltration: Structural: Acoustic:
2″ 4-1/2″ 1″ std
(1/8″ – 1-1/8″)
0.06 CFM/Ft.2
@ 6.24 PSF
12 PSF – Static
12 PSF – Dynamic
30 PSF – Design
45 PSF – Overload
STC 32
OITC 26
T14000 Series Product Specifications
Application: Low-rise commercial buildings including retail, office, healthcare, schools, etc.
Description: 2″ x 4-1/2″ center set, outside or inside flush glazed storefront.
Face Width: Overall Depths: Glass: Air Infiltration: Water Infiltration: Structural: CRF: U-Factor**: Acoustic:
2″ 4-1/2″ 1″ std
(1/8″ – 1-1/8″)
0.06 CFM/Ft.2
@ 6.24 PSF
12 PSF – Static
12 PSF – Dynamic
30 PSF – Design
45 PSF – Overload
T (Thermal) 62F 68G 0.36 – Thermally Improved
0.34 – Thermally Broken/Strutted Filler

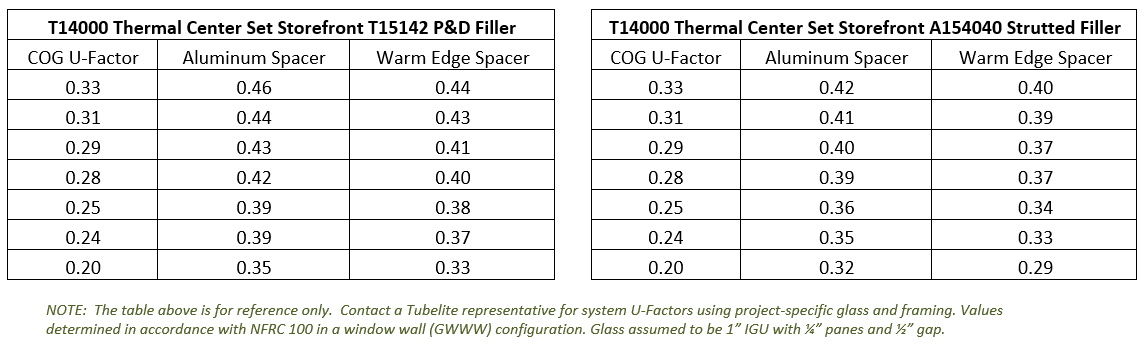

Note: Full U-Factor Table Coming Soon

STC 31
OITC 25

** U-Factor per NFRC 100: COG = 0.24 with warm edge spacer, 1-3/4” x 4-1/2” non-thermal frame.

E14000 Series Product Specifications
Application: Low-rise commercial buildings including retail, office, healthcare, schools, etc.
Description: 2″ x 4-1/2″ center set, outside or inside flush glazed storefront.
Face Width: 2″
System Depth: 4-1/2″
Glass: 1″ std (1/8″ – 1-1/8″)
Air Infiltration 0.06 CFM/Ft.2 @ 6.24 PSF
Water Infiltration: 12 PSF – Static, 12 PSF – Dynamic
Structural: 30 PSF – Design, 45 PSF – Overload
Acoustic: STC 32, OITC 26

T14000 Series Product Specifications
Application: Low-rise commercial buildings including retail, office, healthcare, schools, etc.
Description: 2″ x 4-1/2″ center set, outside or inside flush glazed storefront.
Face Width: 2″
System Depth: 4-1/2″
Glass: 1″ std (1/8″ – 1-1/8″)
Air Infiltration 0.06 CFM/Ft.2 @ 6.24 PSF
Water Infiltration: 12 PSF – Static, 12 PSF – Dynamic
Structural: 30 PSF – Design, 45 PSF – Overload
CRF: T (Thermal) 62F 68G
U-Factor**: 0.36 – Thermally Improved
0.34 – Thermally Broken/Strutted Filler

Note: Full U-Factor Table Coming Soon

Acoustic: STC 31, OITC 25

** U-Factor per NFRC 100: COG = 0.24 with warm edge spacer, 1-3/4” x 4-1/2” non-thermal frame.
Guide Specification
Perimeter Sheet – DWG / PDF
E14000    |
T14000    |
BIM ComingSoon!
Design Manual
E14000
T14000
Installation Instructions
Windload Charts (ASD format) ComingSoon!
Safety Data Sheets – SDS
Sample Warranty
Air-Water Structural-Seismic
CRF
T14000 Thermally Broken
T14000 Thermally Improved
Acoustic
E14000
T14000
NFRC 100-200-500 Coming Soon!

EXAMPLES >

Wendy’s
Hilliard, OH

Bay Industries
Green Bay, WI

Vision Service Plan
Columbus, OH
